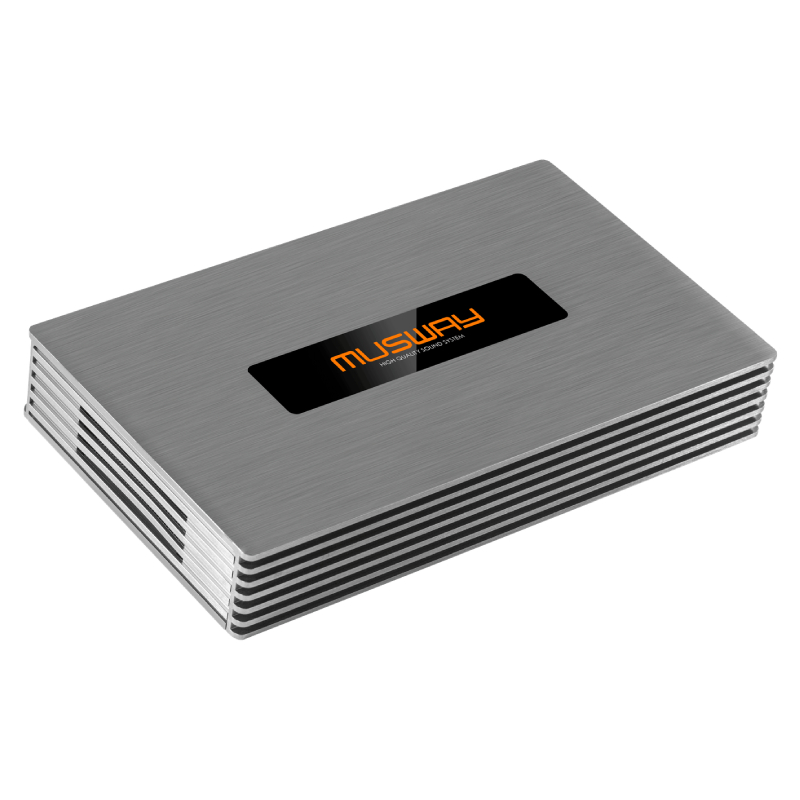

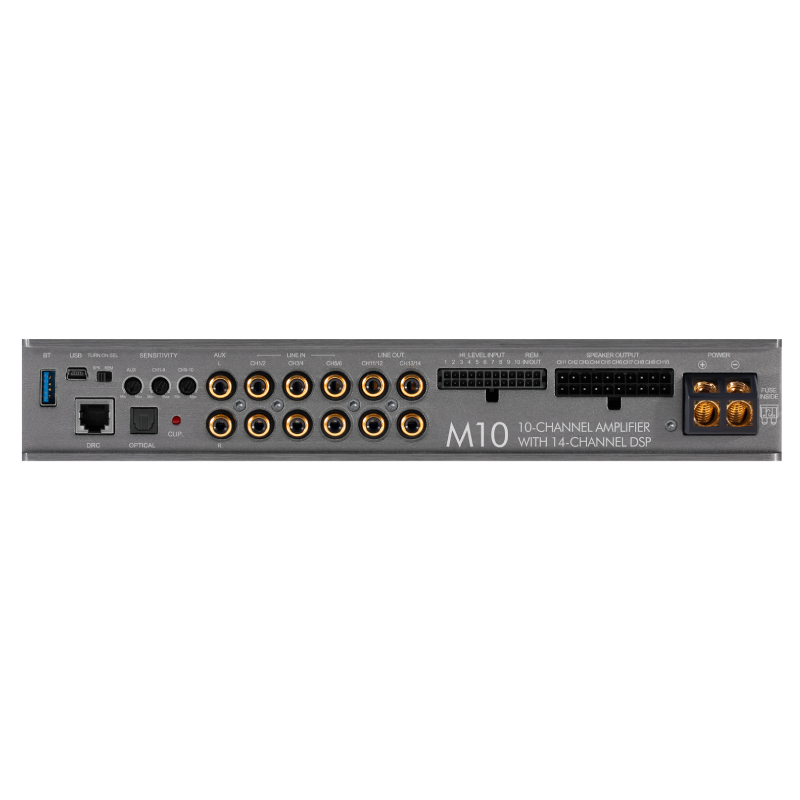

M10
New10 Channel Full Range Class D Amplifier with 14 Channel DSP
The Musway M10 is a revolutionary 14-channel digital signal processor (DSP) amplifier, inheriting accolades from its predecessor, the M12. With a slimmer design, it offers 10 channels of Class D amplification, providing eight channels for multi-channel systems and two channels with enhanced power for subwoofers. The core of the M10 is its 14-channel DSP, offering audiophile-grade features, customizable through Musway's free PC software or the optional BTA2 dongle for smartphone control. Ideal for complex multi-channel setups, the M10 delivers top-tier performance, exemplifying Musway's commitment to unparalleled sound quality in car audio systems.
Downloads:
×
![]()
M10 Product Overview
- Intelligent High Level Input (Error Protection System)
- Start-Stop ready, Auto Turn-On
- Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)
- 32bit, 295 MHz DSP technology, controllable via new V3 PC software or Tunest App
- Signal-to-noise Ratio ≥95dB
- Frequency Response 15 Hz – 22 kHz (-3dB)
- THD ≤0,05% (1 kHz, 4Ω, 90% Power)
- Separately controllable input sensitivity (Channel 1-8, Channel 9-10, AUX), Clipping LEDs
- External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
- Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

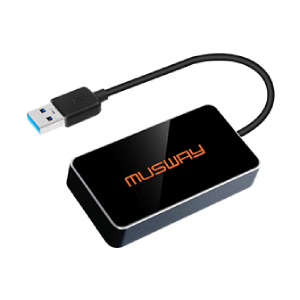

BTS
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming
For Use on the M4, M4+, M6, D8, and DSP68
Dimension: 61(L) x 36(W) x 10(H)

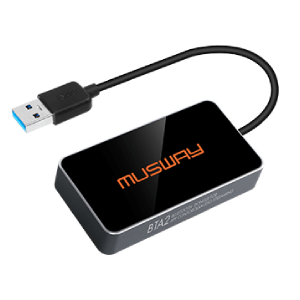

BTA2
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming and APP Tuning
For Use on the M4+, M6, D8, M12, DSP68 and TUNE12
Dimension: 61(L) x 36(W) x 10(H)

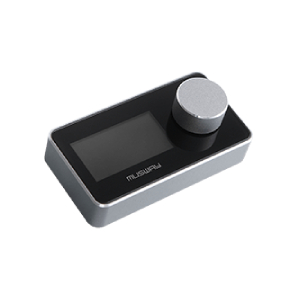

DRC1
Digital Remote Control
Adjustable Master Volume and Subwoofer Level
Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical
Selectable Mute . Set Channel Pair for Subwoofer Level
For Use on the M4+, M6, D8 and DSP68
Dimension: 60(L) x 33(W) x 13(H)

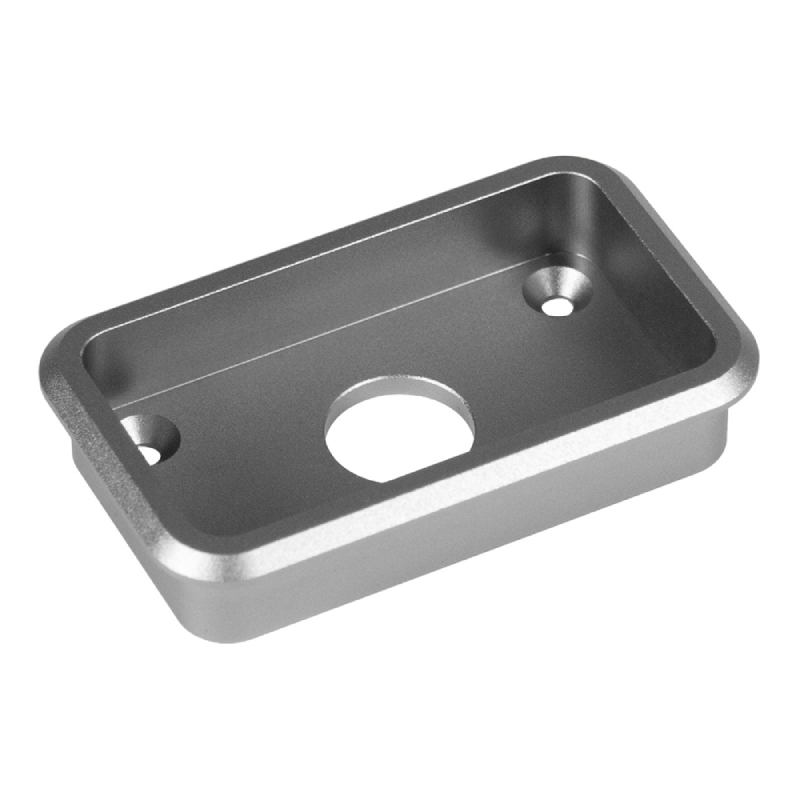

MB-DRC
Digital Remote Control Mounting Bracket
Made in Aluminium
4 Mounting bracket holes
DRC-1 not included
For Use on the DRC-1
